15.6 inch to 43 inch Wall Mountable / Desktop / Floorstanding Touch Screen Automatic Payment Machine with Thermal Printer / QR Code Scanner and POS holder
Screen size | 15.6 inch to 43 inch |
Resolution | 1920*1080 |
Brightness | 200 – 350 nits |
Viewing angle | 178/178 |
Life time | 50000 hours |
Mateiral | Metal+ PCAP touch screen |
Touch points | 10 points capacitive touch screen |
Android System | Android 7.1 or Win 10 Pro or Linux |
Android Spec | 2G+8G |
Windows System | Win 10 Pro |
Windows Spec | I3, I5, I7, 4G/8G, 128G/256G/512G SSD |
Internet connection | Wifi, Lan, 4G on option |
| Product Name: | Indoor Self Service Kiosk | Touch Screen: | 10point Capacitive Touch Screen |
|---|---|---|---|
| Screen Size: | 15.6″/21.5″ | OS: | Android 11/Win 10/Linux OS |
| Meterial: | Metal Case+tempered Glass | Printer: | 80mm Thermal Printer |
| Scanner: | QR Code,bar Code,NFC | Color: | Black/Silver/White/Customize |
| Customized: | Logo,functions,packages | Installation: | Wall Mount,Floor Stand |
| High Light: |
2D Scanner Self Service KioskFloor Stand Self Service Kiosk15.6” Self Service Kiosk |
||
Product Description
15.6 inch Floor Stand Touch Screen Terminal Self Service Kiosk with Printer 2D Scanner
Quick details of touch screen self service kiosk :
1. Screen size:15.6inch,optional size:21.5″ 24″ 27″ 32″
2. 10 points capacity touch screen
3. Resolution:15.6″ 1366*768,Full HD 1920*1080 can choose
4. Hardware:80mm thermal printer,2D scanner support QR code,bar code,NFC
5. Color:black,white or other color
6. Installation:wall mount,floor standing
7. Motherboard:Android or mini PC motherboard
8. OS:Android 7.1/9.0/10/11 OS or Win 10 OS,Linux OS
9. Support customized function,silk print logo
10. Sample order is welcome
Specification of touch screen self service kiosk :
| Resolution | 1920*1080 | |||||
| Panel | BOE original panel, A level | |||||
| Display area | 698*392mm | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1200:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ | |||||
| Power Consumption | 80W | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Aluminum+Metal | |||||
| Bare dimension | TBC | |||||
| Wooden box dimension | TBC | |||||
| Color | white | |||||
| QR code scanner | Yes, also support NFC card reader | |||||
| Touch Type | 10 point PCAP touch screen | |||||
| Printer | 8cm Thermal printer inbuilt | |||||
| Mifare IC card reader | Yes, inbuilt | |||||
| Pos machine | No, but prepare space on side of machine, POS installed for credit card payment | |||||
| Normal Working Temperature | 0°——50° | |||||
| Normal Storage Temperature | -20°——60° | |||||
| CPU | RK3288, RK3568, RK3399 | |||||
| Network connection | LAN, WIFI | |||||
| RAM | DDR3 2G, 4G OPTIONAL | |||||
| Memory | 8G, 16G, 32G, 64G optional | |||||
| The operating system | Android 7.1,10, support Google play | |||||
| Interface | HDMI out*1, USB*1, USB OTG*1, Lan*1, SD card*1 | |||||
| CPU | I3, I5, I7 | |||||
| Network connection | LAN, WIFI | |||||
| Memory | DDR3 4G or 8G or even 16G | |||||
| SSD | 128G, 256G | |||||
| The operating system | Win10 pro | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Description of indoor interactive self service kiosk
Self-service kiosks are increasingly a trend. Besides bringing a certain freedom to the consumer, they speed up many tasks that we carry out on a daily basis.These self-service kiosks are Modern and elegant, they were designed to offer simple and intuitive solutions for everyone, guaranteeing customers convenience and security.
This model 15.6 inch touch screen self service kiosk,inbuilt with 80mm thermal printer,QR code scanner,Bar code scanner,NFC.can be both wall mount or floor stand installation.The K shape stand can adjust the angle of the touch screen.Different solution can be choose:HDMI input connect media player box or inbuilt with Android or mini pc motherboard.Android version can be install Android 11 OS,2GB RAM,16GB ROM.Windows version can be win 10 os,Linux OS,4th I3,I5,I7 CPU,8GB RAM,128GB/256GB SSD,Wifi,Lan port.
Benefit and Application of interactive self service kiosk
1. Improved customer experience
2. Increased order accuracy
3. Reduction of waiting time
4. Effective of communication
5. Increased revenue and efficiency

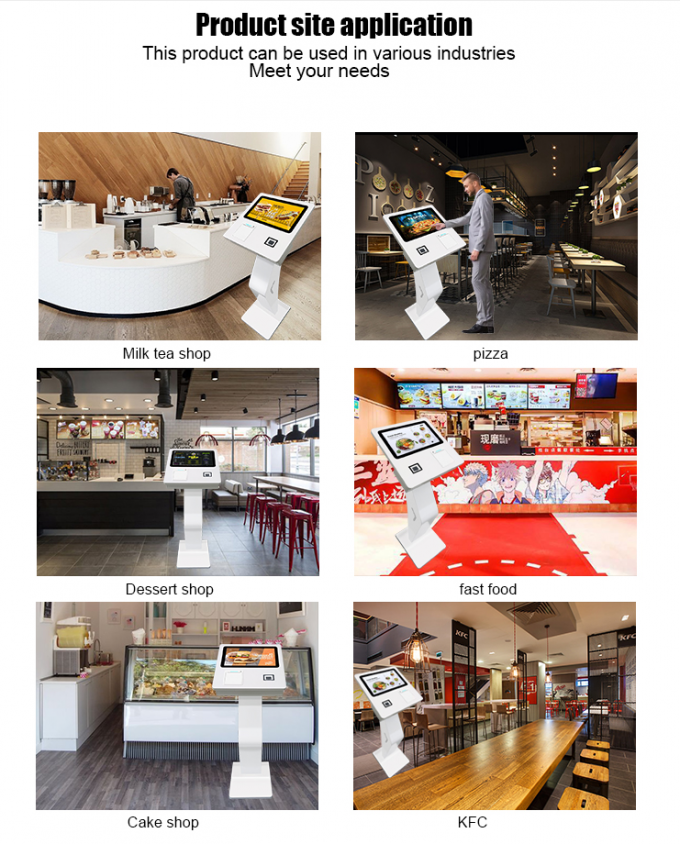

Self service kiosk Application:can use in Supermarket and Restaurant, tea shop, fast food shops, retail stores, KFC and Mcdonald’s, Burger King Nando’s Pizza Hut and dessert shop,healthcare facilities,airport,hotel,bankcinemas,supermarket,etc.
