23.6 Inch Touch Screen Self Service Payment Kiosk With RK3399 2G RAM 16G ROM
| Keyword: | Self Service Touch Screen Payment Kiosk | Screen Touch: | 10 Points Capacity Touch Screen |
|---|---|---|---|
| Installation: | Desktop Stands | Contrast Ratio: | 3000:1 |
| Optional Function: | Camera/LED Logo/Printer/QR Code Scanner Etc | Max Resolution: | 1920*1080 |
| Size: | 15.6/24inch | Warranty: | 1 Year |
| High Light: | 23.6 Inch Self Service Payment Kiosk,Touch Screen Order Payment Kiosk,16G ROM Self Service Payment Kiosk | ||
Product Description

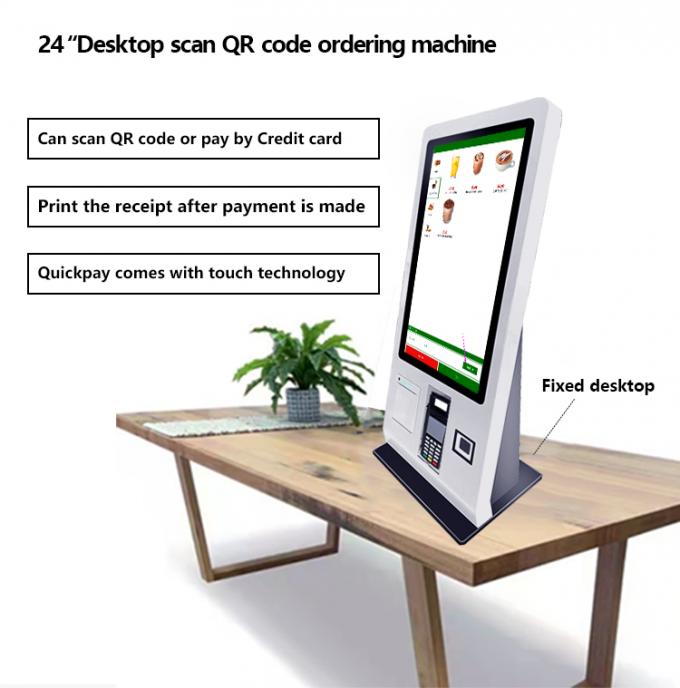

23.6 inch self service touch screen payment kiosk with printer and scanner for Mc and KFC ordering Machine

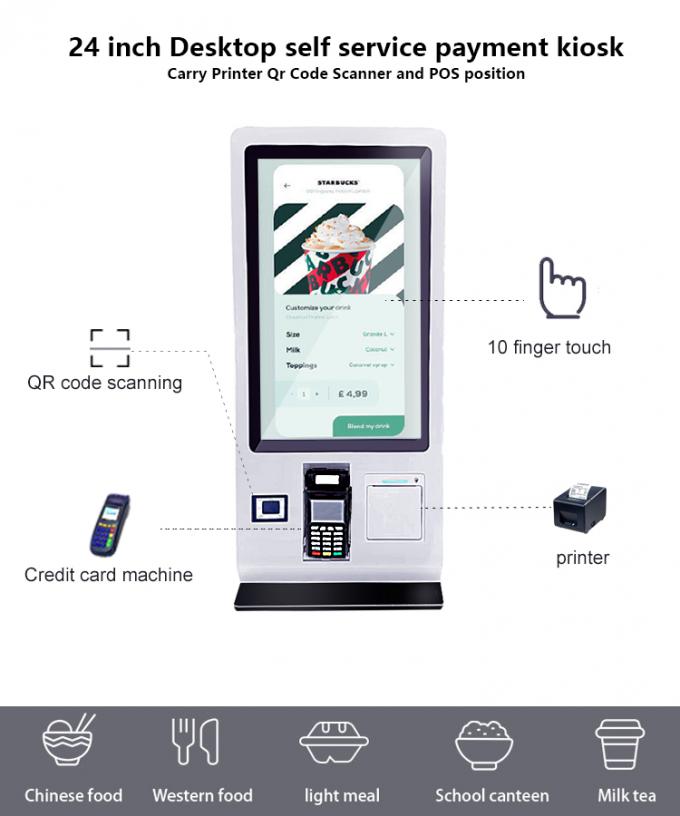

Quick details of self service payment kiosk:
1. Screen size in 24inch
2. High resolution of 1920*1080
3. 10-point PCAP touch screen
4. With QR code scanner embedded
5. With 80mm thermal printer inbuilt.
6. With meal call pager holder on side part
7. With Windows 10 system inbuilt or Android OS
8. Desktop standing design
9. Has metal cover to protect electronic parts inside.
10. Carton has hand holder for easy carry.
| Panel Specification | Model NO. | MG-240HTA |
| Panel | 24″ BOE TFT-LCD A grade | |
| Display area | 531.36mm(H)*298.89mm(v) | |
| Max Resolution | 1920*1080P Full HD | |
| Brightness | 350 cd/m2 minimum | |
| Pixel Pitch(mm) | 0.1845mm(H) x 0.1845mm(W) | |
| Aspect Ratio | 16:9 | |
| Color Components | 16.7M | |
| Visual Angle | Horizontal178/Vertical178 | |
| Contrast ratio | 1200:01:00 | |
| Responsive Time | 5ms | |
| Speaker | built-in speaker*2 (5w 9Ω) | |
| Panel Life | above 60000 hours | |
| mother board | Model: | MPC-01428 |
| CPU: | inter®core™i5 | |
| CPU frequency: | 2.6Ghz | |
| Motherboard chipset : | Intel NM10 Express chipset. | |
| Built in Wi-fi | yes | |
| Hard Disk: | SATA3.0GB/S/156GB/ | |
| RAM: | 4GB/DDR3-1333 | |
| Graphics: | Integrate Intel GMA X4500 display core | |
| Sound card: | integrate Realtek ALC887 8 chip | |
| Network card: | onboard 100 M -Ethernet network-card | |
| keyboard and mouse : | PS/2 | |
| Horn : | 2*8W | |
| OS: | windows 10 | |
| PC I/O interface | 4 * USB 2.0, 2*PS/2,1 * RJ45, 1 * Line-in, 1 * Earphone, 1 * Microphone,1 * COM(1 *LPT1,1*VGA) | |
| Detail machine | Colour | white |
| Main material | Metal shell and 3mm thichness tempered glass | |
| Scanner | RQ Code scanner with NFC function | |
| Printer | model:PT80KM-X Colour: white interface:USB | |
| description:80MM thermal printer | ||

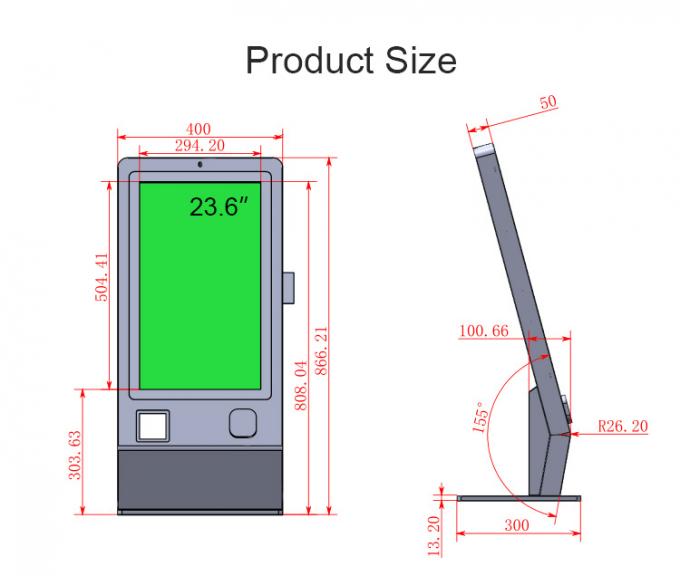

| machine dimension | 88.8*13*41.2cm(L*W*H) | |
| carton package dimension | 100*22*54cm(L*W*H) weight:23KG | |
| Menu language | Chinese English (Multiple Language Supporte) | |
| Power supply | AC100-240V 50/60HZ | |
| Max power consumption | ≦108w | |
| Standby power consumption | ≦5w | |
| Working temperature | 0℃-50℃ | |
| Storage temperature | -20℃-60℃ | |
| Working temperature | 20%-85% | |
| Storage temperature | 10%-90% | |
| Internet | Wifi and Lan | |
| Accessory | Power Cables English Manual |
