| Key Word: | Movable Macdonalds Self Service Kiosk | Screen Size: | 32″ |
|---|---|---|---|
| Panel Brand: | BOE Original Panel, A Level | Touch Screen: | 10 Fingers, Capacitive Touch Screen |
| Thermal Printer: | Yes, Inbuilt | QR Code Scanner: | Yes, Inbuilt |
| NFC Card Reader: | Yes, Inbuilt | Pos Space: | Yes, Inbuilt |
| Wheels: | Optional | System: | Android Or Windows 10 |
| High Light: | 32″ Movable Self Service Kiosk, NFC Card Reader Self Service Kiosk, NFC Card Reader Food Ordering Machine | ||
Product Description
32″ Movable Android PC Self Service Macdonalds Kiosk Food Ordering Machine with NFC Card Reader
Quick details of Macdonalds Kiosk :
1. Hotsale size is 24inch, 27inch and 32inch.
2. Android or Windows system inbuilt.
3. With receipt printer, QR code scanner, NFC card reader, POS space, camera, wheels optional.
4. 10 fingers capacitive touch screen.
5. Software should be from buyer.
6. Can also be installed on the wall.
7. Floor stand optional, with height adjustable, can be fixed onto ground or with wheels on base so it can be moved anywhere.
8. All our Self Service Kiosk got CE Certificate.pdfand RCM Certificate.pdf certified, certificates as in the links, they can be downloaded by double clicking.
Specification of LCD Payment Terminal Kiosk:
| Resolution | 1920*1080 | |||||
| Panel | BOE original panel, A level | |||||
| Display area | 597*336mm | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1000:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ | |||||
| Power Consumption | 110W | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Aluminum+Metal | |||||
| Thermal printer | Yes, 8cm width of thermal paper | |||||
| Bar code QR code scanner | Inbuilt | |||||
| Meal call pager holder | Yes, has holder on side to hold meal call machine | |||||
| Color | White / black | |||||
| QR code scanner | Inbuilt | |||||
| Touch Type | 10 points PCAP touch screen | |||||
| Printer | Thermal printer inbuilt | |||||
| Pos machine | Yes, but POS should be from buyer | |||||
| Floor stand | Movable, can be with wheels on the base, height is adjustable | |||||
| Normal Working Temperature | 0°——50° | |||||
| Normal Storage Temperature | -20°——60° | |||||
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz | |||||
| Network connection | LAN, WIFI | |||||
| RAM | DDR3 2G | |||||
| Memory | 8G | |||||
| The operating system | Android 7.1, support Google play | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
| CPU | i3, i5, i7 | |||||
| Network connection | LAN, WIFI | |||||
| Memory | DDR3 4G or 8G | |||||
| SSD | 128G or 256G | |||||
| The operating system | Beta Win10 | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Description of LCD Touch Screen Receipt Printer Payment Kiosk:
This Macdonald’s kiosk is mainly used in shopping mall, restaurant, super market, hotel and hospital, has 10 fingers capacitive touch screen with fast speed and smooth touch experience, the self service kiosk has receipt printer, QR code scanner and POS slot, the bar code&QR code scanner has NFC card reader function, and customer install POS themself as POS in China may can not be used in their countries.
The floor stand has been upgraded for many versions, now it’s steady enough, no worry about it falling down in public area, besides, it can be fixed onto ground with screws, height is adjustable as well, now in order to move it easily, wheels can be added to make it movable, one lady can move it anywhere quite easily.
The main feature of the upgraded food ordering system kiosk is the upgraded thermal printer, now the power button can not be reached by others as we removed all outside buttons, and you can only change paper from the touch screen kiosk’s engineering door.
Two main systems Android and Windows can be inbuilt, also it can be only with HDMI input without any system, user can connect their own media player box with the machine, besides, we usually prepare some power socket inside so other equipments if any can be powered as well, this is really a quite smart idea, as a factory, it’s easy for us to do this function.
The door can be easily opened for maintenance, it has metal cover inside to protect all electronic parts.

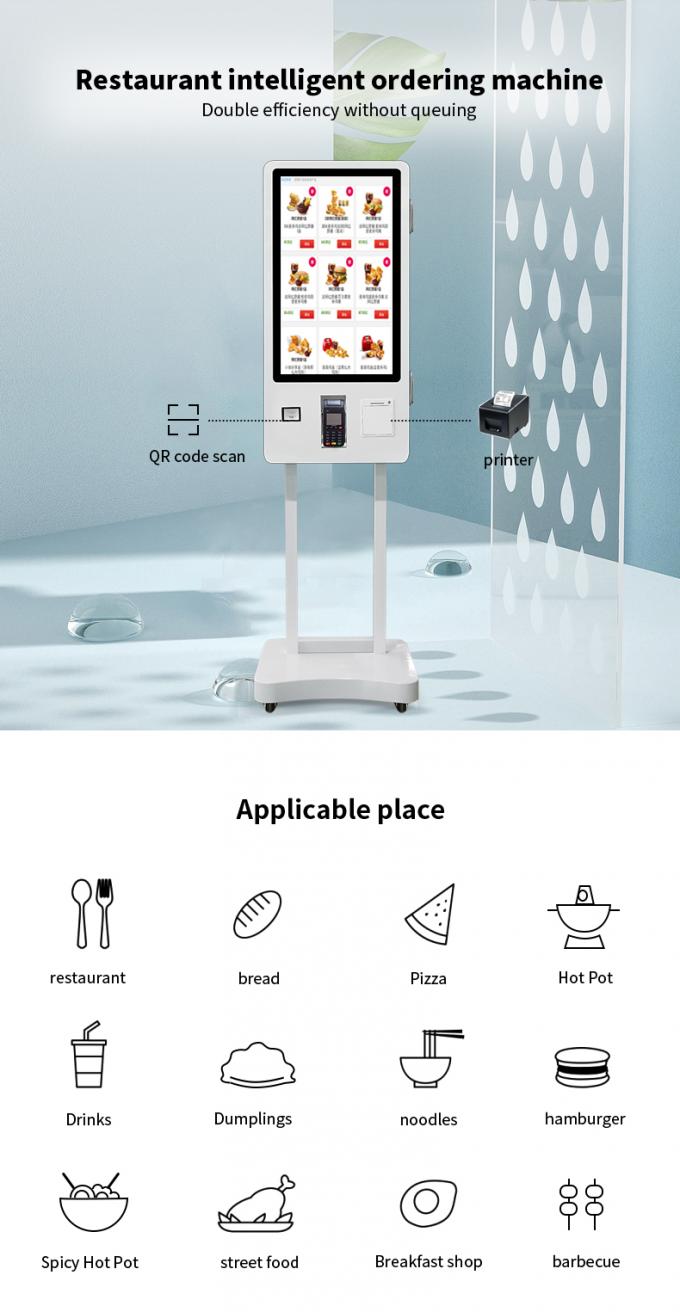

Application of Self service exhibition kiosk stand:
This touch screen self payment kiosk can be widely used in Supermarket and Restaurant, also the wall mount payment kiosk can be used in Cinema, fast food shops, stores, Mcdonald’s, Pizza Hut and parking lot.
Customers order food and reduce labor costs
In the ordering process, the error rate canbe effectively reduced
Online payment to improve cashier efficiency
Food display, improve customer order rate

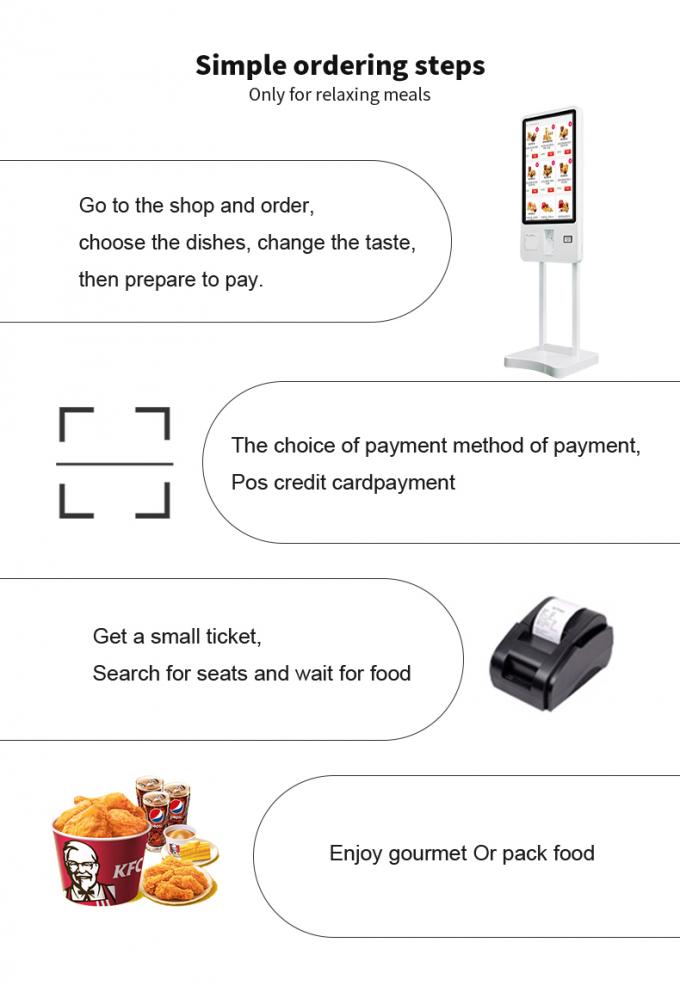

Go to the shop and order
choose the dishes
change the tastethen prepare to pay
Self-service ordering machine is the fastest, most reliable and most commercially valuable sales model under the electronic sales model. Customers can query and select dishes by touching the operating screen, and pay for meals through the function of cash deposit. The payment methods include: Alipay, two-dimensional code, cash, Unionpay card, etc., user-friendly operation interface, easy to use steps, real-time meal tickets. Zhongshiguang self-service ordering machine is a common device used by some fast food restaurants and cantons. By connecting with front-end mobile phone equipment and kitchen printing equipment, it helps catering shops realize integration and intelligent management, and improves service efficiency.
